TINI Socket

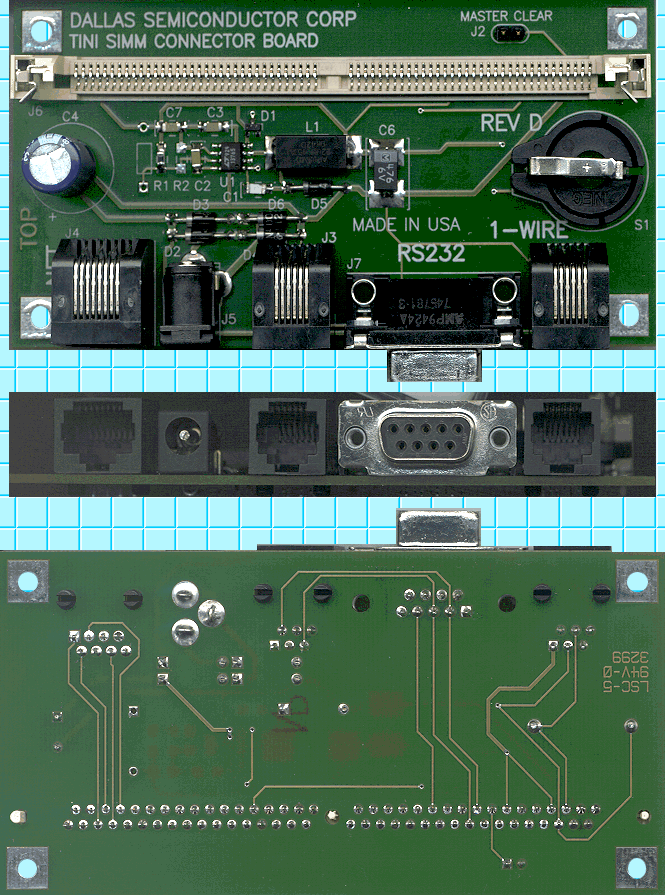

The image below is a composite image of the top, edge, and bottom of the TINI Socket with voltage regulator. These images were produced by placing the TINI Socket directly on the scanner glass and scanning at 150 DPI. The top and edge images do not appear as wide as the bottom image because the printed circuit board was farther from the glass (because the socket assemby was resting on the tops of the connectors). The white, horizontal connector is the SIMM socket into which the TINI Board is inserted. Pin 1 is the furthest to the right. The round connector on the right hand side of the top image is an iButton clip. The connectors along the edge of the board are summarized in the table below.

Connector Purpose






Connector Type







The iButton Clip

The iButton clip accepts an F5 MicroCan iButton (such as the DS1921 Thermochron) easily, but it is a tight fit and put a nice scratch on the back of the iButton upon removal. Removing an F5 MicroCan iButton is not going to happen accidentally. We found the iButton much easier to remove with the snap-in fob attached to it, using the fob as a sort of iButton wrench. We do not have any of the thinner iButtons, so we can't comment on how those fit, but presumably they will work as well and may even come out with less effort (though still not accidentally).

We have found that inserting a small piece of heavy paper between the clip and the top of the iButton will prevent scratches when removing the iButton. The same technique can be used in reverse when inserting the iButton. Do not forget to remove the paper before attempting to use the device!

The Power Connector

The power connector is a typical power connector type, but we don't know of any way to describe it other than verbosely. It is a round, coaxial connector that has an outside diameter of about 6 mm and an inside diameter of about 2 mm. These dimensions are different on the unregulated TINI Socket.

The RJ-11 Connectors

The TINI Socket has two RJ-11 connectors. One is a redundant serial interface hard-wired to the DB-9 serial connector. The other is a One Wire connector. The pins of the two RJ-11 connectors are numbered 1 through 6. As pictured, pin 1 is on the left (closest to the power connector) and pin 6 is on the right (furthest from the power connector). The pin-outs of the two RJ-11 connectors (serial and 1-Wire) are shown below.

The Serial Connectors

As you can see from the image below, the two serial connectors are wired together. The serial connectors are wired as a DCE. That means that TINI transmits data on the Receive Data line and receives data on the Transmit Data line. Therefore, the cable used should be a regular modem cable (modems are also wired as DCEs). This is different from the so called null modem cable which is used to connect two DTEs (i.e. PC's). The pin-outs of the two serial connectors is shown here. Any pin tht is not shown has no connection. For the numbering of the RJ-11 pins, see The RJ-11 Connectors section.

Pin-outs of TINI Serial Connectors

RJ-11 Pin

DB-9 Pin

TINI Signal Name

RS-232 Signal Name



TX232 RD (Receive Data)



DTR232 DTR (Data Terminal Ready) (See Note 1)



Ground SG (Signal Ground)



RX232 TD (Transmit Data)

Note 1: DTR is used by the TINI board to reset the CPU. Therefore, if DTR is wired through to the device at the other end of the serial cable (e.g. a computer), that device can be used to reset TINI's CPU. Note that this may be both good and bad. It may be convenient to be able to reset TINI simply by toggling DTR, but if the other device toggles DTR at other times (e.g. when it reboots), then it may not be so desireable.

The One-Wire Connector

If it's called "one-wire", why do they need a six conductor connector for it? Using a six conductor connector allows power to be supplied through the other conductors. These pins may be used to power attached devices, but only you are responsible for what happens when you take excessive power from these "power" pins or introduce excessive noise into them. The pin-out of the one-wire connector is shown here. For the numbering of the RJ-11 pins, see The RJ-11 Connectors section.

Pin-out of TINI 1-Wire Connector

RJ-11 Pin

Signal Name


VCC (5 volts regulated)


Power Ground


One Wire Data


One Wire Ground


No Connect


V+ (unregulated DC)

The Master Clear Jumper

Connector J2, which is labeled "MASTER CLEAR", has one side connected to ground and the other side connected to pin 16 (INTOW) of the SIMM socket. INTOW is the INTernal One-Wire bus of the TINI board. According to the Dallas Semiconductor folks on the the TIN Mailing list, the internal 1-wire is used for four purposes:

  1. To read the TINI's unique ID and ethernet address from the DS2502.
  2. To control the CPU Status LED.
  3. To initiate a "master clear". If J2 is shorted during power-up, TINI's heap will be cleared. This is exactly the same as doing b18<cr>f0<cr> from the loader prompt in JavaKit.
  4. As a 115,200 baud output-only TTL-level serial port for system diagnostics and error messages. Theoretically, if you run this through a TTL-to-RS232 level shifter, you can hook it up to the RD line of your PC's serial port to see these messages. We have not tried that yet, but it's tempting. There is even an unused RS-232 driver on the DS232A that could be used to level-shift the signal and an unused pin on the SIMM (pin 57) to "export" the RS-232 level signal. Hmmm, if only the pins on the DS232A weren't so small!
