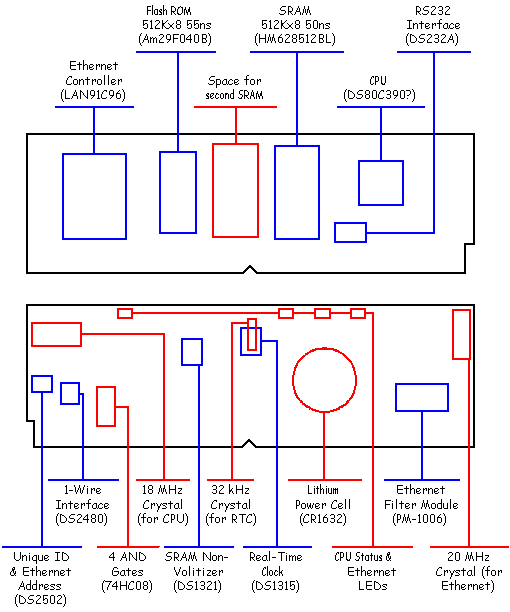

This page shows the TINI board in outline form and identifies the major components. The components outlined in blue are linked to their entry on the TINI Components page. To see an image of an actual TINI board, visit the TINI Image page.
Front Side
Back Side
